Engine Timing Tool Kit For BMW B38, B48 & B58 Engine

Engine Timing Tool Kit For BMW B38, B48 & B58 Engine

engine, this specific master kit format includes the complete set of block adapters and specialized wrenches to service the entire modular engine family: the B38 (3-Cylinder), B48 (4-Cylinder), and B58 (6-Cylinder).

Here is the professional catalog listing layout for this tool kit:

Website Product Name

·         Product Title: BMW B38, B48 & B58 Master Engine Camshaft & Crankshaft Timing Locking Tool Kit

·         Category: Vehicle Repair Tools -> Specialty Engine Service Tools -> Camshaft Alignment Kits

Description & Kit Breakdown

This commercial-grade specialty kit is designed for professional mechanics to lock the camshafts, variable valve timing units (VANOS), and crankshaft in their absolute Top Dead Center (TDC) positions. It is mandatory during timing chain replacement, cylinder head gasket repair, or camshaft assembly tasks.

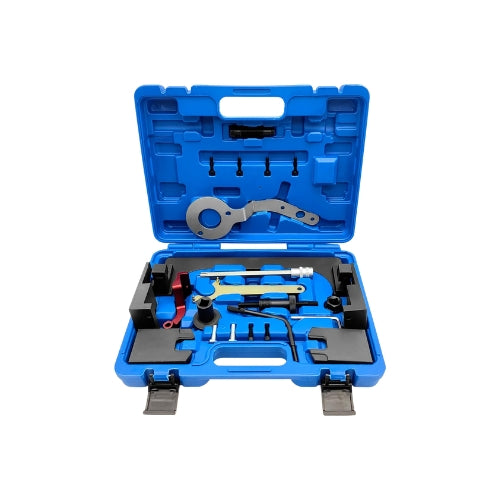

Key Components Identified in Your Box Layout:

·         Camshaft Setting Tool Blocks (Black Blocks): Precision-milled alignment blocks that seat directly onto the intake and exhaust camshaft ends.

·         Updated Camshaft Setting Tool Holder (OEM 2456372 / Red Component): The upgraded alignment bracket required to anchor and lock down the camshaft blocks securely against the engine head.

·         Crankshaft Flywheel TDC Locking Pin & Adapter (Center Angled Pins): For locking the engine flywheel firmly through the transmission bellhousing.

·         Extra-Long T60 Torx Socket (Silver Bit): A heavy-duty $1/2\text{-inch}$ drive, 200 mm length socket specifically required to adjust the central VANOS/camshaft sprocket bolts deep within the engine bay.

·         Timing Chain Pre-Tensioning Tool (Center Threaded Bolt Assembly): Simulates hydraulic chain tension during setup.

·         Special Actuator Pin Wrench (Gold Wrench): Specialized pin tool for manually setting up variable timing gear positions.

Eligible Engine Codes

This master kit serves the universal modular platform engines across these specific iterations:

·         B38 Petrol: 1.2L & 1.5L Turbo Inline-3 (Codes: B38A12A, B38A15A, B38B15A, B38K15A)

·         B48 Petrol: 2.0L TwinPower Turbo Inline-4 (Codes: B48A20A, B48B20A, B48B20B)

·         B58 Petrol: 3.0L TwinPower Turbo Inline-6 (Codes: B58B30A, B58B30B, B58B30C)

Comprehensive Fitment Vehicle List

Because this master set handles the B38, B48, and B58 configurations, it applies to an enormous inventory of BMW and MINI models built from 2014 to 2026+.

1. BMW Models (Equipped with B38 / B48 / B58 Engines)

·         1 Series (F20 / F21 / F40): 116i, 118i, 120i, M140i

·         2 Series (F22 / F23 / F44 / F45 / G42): 218i, 220i, 225xe, M240i / xDrive (Gran Coupe & Coupe)

·         3 Series (F30 / F31 / G20 / G21): 318i, 320i, 330i, 330e (Hybrid), M340i / M340i xDrive

·         4 Series (F32 / F33 / F36 / G22 / G23 / G26): 420i, 430i, M440i Gran Coupe

·         5 Series (G30 / G31): 520i, 530i, 540i / 540i xDrive

·         6 Series GT (G32): 630i, 640i xDrive Gran Turismo

·         7 Series (G11 / G12): 730i, 740i / 740Li

·         8 Series (G14 / G15 / G16): 840i Gran Coupe

·         X1 Series (F48 / U11): sDrive18i, sDrive20i, xDrive25e

·         X2 Series (F39 / U10): sDrive18i, sDrive20i

·         X3 & X4 Series (G01 / G02): xDrive20i, xDrive30i, M40i

·         X5, X6 & X7 Series (G05 / G06 / G07): sDrive40i, xDrive40i

·         Z4 Roadster (G29): sDrive20i, sDrive30i, Z4 M40i

·         i Series (Supercar): i8 Coupe / i8 Roadster (B38 Engine on Rear Axle)

2. MINI Models (Equipped with B38 & B48 Engines)

·         MINI Hatch (3-Door / 5-Door - F55 / F56): One, Cooper, Cooper S, JCW

·         MINI Clubman (F54): One, Cooper, Cooper S, JCW ALL4

·         MINI Convertible (F57): Cooper, Cooper S

·         MINI Countryman (F60): Cooper, Cooper S, Cooper SE ALL4 (Hybrid)
